Commercial gutter pools require surge tanks because displaced water has to go somewhere, and without a dedicated vessel to receive it, that water floods the deck, starves the pumps, and puts your facility out of code compliance. The three core reasons are straightforward: surge tanks contain the water displaced when swimmers enter and exit, they protect the hydraulic system from pressure swings and pump cavitation, and they satisfy the public health code requirements most states enforce for perimeter-overflow pools.
A few numbers frame the stakes immediately:
- Surge capacity: Most jurisdictions require at least 1 gallon per square foot of pool surface area.
- Circulation handling: The overflow system must be able to handle 100% of the circulation flow without flooding.
- Transfer time: Some state codes limit how long surge water can sit in the tank before returning to the pool (one state rule sets this at 20 minutes or less).
Get these three things right and the rest of the design falls into place. Miss any one of them and you are looking at deck flooding, health-inspection failures, or a pump that cavitates itself to death.
Key Takeaways
Surge tanks are required for most commercial gutter pools because they contain displaced water, protect pump hydraulics, and satisfy the health code rules that govern overflow systems in the United States.
| Point | Details |
|---|---|
| Code-minimum sizing | Most jurisdictions require at least 1 gal/ft² of pool surface area; some require 2 gal/ft². |
| Circulation flow handling | The overflow system must handle 100% of design circulation flow without deck flooding. |
| Venting and access | Vent to atmosphere outside the mechanical room; specify a hatch large enough for interior cleaning. |
| Controls and make-up | Include high/low level sensors, automatic make-up valve, and pump cavitation alarm on every installation. |
| Longhorn Pools | Longhorn Pools specifies and installs compliant surge systems on commercial gutter pools across Austin and the Texas Hill Country. |
Table of Contents
- Why commercial pools need surge tanks: the core hydraulic problem
- Health codes and performance requirements that drive surge capacity
- What types of surge tanks are used and where they go
- How to size a surge tank for a commercial pool
- Essential components and controls every surge tank needs
- Common installation mistakes that cause real problems
- Surge tank maintenance checklist for facility managers
- Specification checklist for designers and engineers
- A builder’s perspective on getting surge tanks right
- Longhorn Pools builds commercial pools with surge systems that pass inspection
- Sources
Why commercial pools need surge tanks: the core hydraulic problem
When a swimmer dives in, water moves. A lot of it, fast. In a residential pool with skimmers, that displaced water just slaps the wall and settles. In a commercial gutter pool, the perimeter channel is designed to capture that surface water continuously, which means it flows directly into the surge tank rather than back into the pool.
Counsilman-Hunsaker describes surge tanks as open vessels that receive gutter overflow and hold it until the recirculation system can return it to the pool. The flow path looks like this:
- Swimmers displace water → water spills into perimeter gutters
- Gutters drain by gravity into the surge tank
- Pump draws from the surge tank, sends water through filtration and chemical treatment
- Treated water returns to the pool through inlets
The tank acts as a buffer. Without it, transient waves from a crowded lane session would either flood the deck or create a pressure vacuum at the pump suction. The tank absorbs those surges, damps wave rebound, and keeps the pump fed with a steady water supply.
Pro Tip: Vent the surge tank to atmosphere through a dedicated line that terminates outside the filter room. If the vent discharges into the mechanical space, chloramine fumes accumulate quickly. Route it to an exterior wall or roof penetration instead.
Health codes and performance requirements that drive surge capacity
The public health rationale for surge capacity goes beyond hydraulics. When the overflow rim stays at the correct level, surface contaminants, sunscreen, and body oils flow into the gutter and get filtered out rather than recirculating in the pool water. Drop the water level below the rim and that surface layer stays in the pool.
The Arkansas Department of Health pool code is a useful concrete example of what state-level rules look like: it requires perimeter overflow systems to provide surge capacity of at least 1 gallon per square foot of pool surface area, mandates that the system handle 100% of circulation flow without flooding, and sets a transfer-time limit for returning surge water to the pool. Most state health departments follow similar logic, even when the exact numbers vary.
Key thresholds designers and facility managers should know:
- Minimum surge capacity: 1 gal/ft² of pool surface area (some jurisdictions require 2 gal/ft²)
- Circulation flow handling: 100% of design flow rate, no deck flooding
- Transfer time: Commonly 20 minutes or less to return surge water to the pool
- Overflow rim level: Must be maintained to keep surface water flowing into gutters
For competition and training facilities, the performance case is just as strong. A properly sized surge tank suppresses wave rebound off the walls, which measurably improves lane conditions. That is why overflow pools require more complex piping and equipment rooms than skimmer pools — the performance payoff justifies the added infrastructure.
Always confirm thresholds with your local health authority before finalizing the design. State rules vary, and some jurisdictions layer additional requirements on top of model code language.
What types of surge tanks are used and where they go
Counsilman-Hunsaker notes that surge tanks are typically concrete and located in the equipment room or under the pool deck. In practice, three configurations show up most often on commercial projects:
- Cast-in-place concrete tanks: Built on-site, sized to fit the available footprint, and coated with a waterproof interior finish. Most flexible for irregular equipment rooms. Require longer construction time and careful waterproofing.
- Precast or manufactured tanks: Factory-built fiberglass or plastic units that arrive ready to install. Faster to set, corrosion-resistant, and available in standard capacities. Less flexible for odd-shaped spaces.
- Balance/collector tanks: Smaller vessels sometimes used on infinity-edge or overflow-channel pools. These collect overflow but often fall short of the surge capacity a health code requires for a fully guttered competition pool.
Typical placement is below deck adjacent to the deep end, or in the equipment room at a lower elevation than the gutters so gravity feed works without pumping. Above-deck placement is possible but uncommon because it requires pumping water up to the tank.

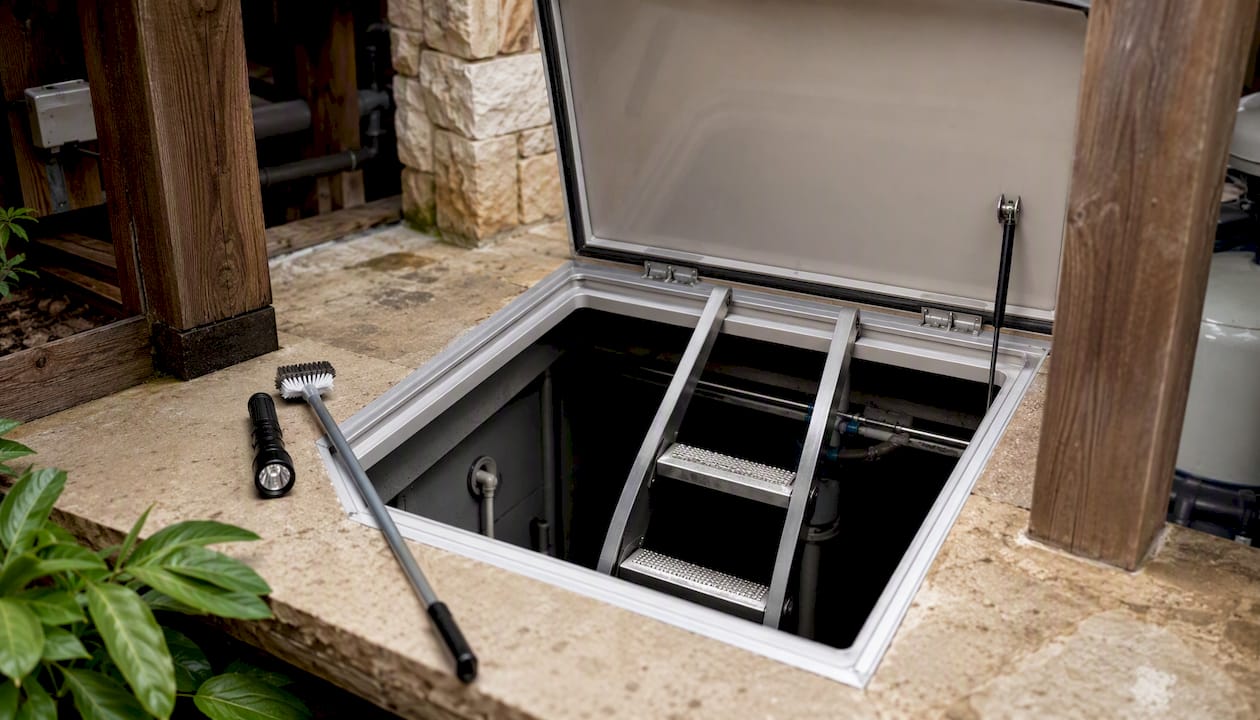

Pro Tip: Specify access hatches large enough for a person to enter the tank for cleaning — a minimum 24-inch opening is a common standard. A tank you cannot physically enter will not get cleaned, and a dirty surge tank causes odor problems and filtration headaches fast.
How to size a surge tank for a commercial pool
The math is straightforward once you know the rule. For most U.S. commercial projects, the starting point is 1 gallon per square foot of pool surface area, per Mermade Filter’s manufacturer guidance and the model code language most states adopt.
Sample calculation for a 10,000 ft² pool:
| Parameter | Value |
|---|---|
| Pool surface area | 10,000 ft² |
| Minimum surge volume (1 gal/ft²) | 10,000 gallons |
| Surge volume at 2 gal/ft² (stricter jurisdictions) | 10000 gallons |
| Approximate tank size at 10,000 gal | ~1,340 ft³ (roughly 10 ft × 12 ft × 11 ft) |
Beyond raw volume, the hydraulic constraints that affect tank and piping design include:
- Suction pipe elevation must be low enough to maintain positive head at the pump under minimum tank level
- Vent sizing must allow air to enter and exit without restricting flow
- Transfer time back to pool must meet the local code limit (commonly 20 minutes)
- Pump capacity must handle 100% of circulation flow drawn from the surge tank
For large or unusually shaped systems, hydraulic modeling tools like AFT Impulse can simulate dynamic surge behavior and help right-size the tank for atypical configurations.
Essential components and controls every surge tank needs
A surge tank without the right controls is just a hole in the ground. Mermade Filter’s installation guidance specifies that tanks must be vented above the pool water level and equipped with modulating float valves to prevent backflow into the pool. Here is the full component list designers should specify:
- Modulating float valve on the main drain line to regulate flow and prevent water from backing up into the pool when the tank is full
- Vent piping to atmosphere, terminating above pool water level and outside the mechanical room
- Pump suction connection at the lowest practical point in the tank
- Access hatch sized for maintenance entry
- Level sensors (high and low) tied to automatic make-up water valve and pump alarm
- Make-up water valve that opens automatically when tank level drops below the low setpoint
- Drain connection for tank cleaning and inspection
On the controls side, the level sensors do the heavy lifting. A low-level alarm protects the pump from cavitation. A high-level alarm warns operators before the tank overflows. The make-up valve keeps the system topped off during periods of low bather load when evaporation and splash-out exceed gutter return.
Pro Tip: Run the surge tank vent on its own dedicated line, not shared with the equipment room exhaust. Shared venting is one of the most common sources of chloramine odor complaints in filter rooms, and it is almost always avoidable at the design stage.
Common installation mistakes that cause real problems
Most surge tank failures trace back to decisions made during design and construction, not operation. Knowing where projects go wrong helps you catch problems before they get poured in concrete.
- Undersized surge capacity: The most frequent error. A tank sized to the pool volume percentage rather than the code’s surface-area rule often comes up short. Always calculate both and use the larger number.
- Blocked or restricted vent piping: A vent that terminates in a wall cavity or gets capped during construction creates a vacuum that slows gutter drainage and causes deck flooding.
- Inadequate access: A hatch too small for entry means the tank never gets properly cleaned. Debris accumulates, odors develop, and filtration suffers. Routine cleaning is the single most effective way to prevent surge tank problems.
- Vent discharging into the filter room: Fumes enter the mechanical space, creating odor complaints and potential safety issues for maintenance staff.
- Incorrect connection elevations: If the suction connection is too high, the pump loses prime before the tank is empty. If the gutter drain enters above the tank’s surge volume, you lose usable capacity.
Catching these on shop drawings is far cheaper than fixing them after construction. Review vent routing, connection elevations, and hatch sizing on every submittal. For a broader look at what goes wrong on commercial builds, the common commercial pool construction mistakes guide covers the full picture.
Pro Tip: Add a surge tank checklist to your submittal review package. Require the contractor to confirm vent termination point, hatch dimensions, and connection elevations in writing before concrete is poured.
Surge tank maintenance checklist for facility managers
Surge tanks gather everything the gutters collect: hair, debris, sunscreen, and anything else that floats on the pool surface. Without a regular maintenance schedule, that accumulation becomes an odor source and a filtration liability. PoolPro Magazine’s guidance on surge tank maintenance makes clear that neglected tanks are a leading cause of preventable pool problems.
Daily/weekly:
- Check level sensor indicators and confirm make-up valve operation
- Inspect gutters for debris that could overload the tank
- Verify float valve is cycling correctly
Monthly/quarterly:
- Inspect vent caps for blockage or damage
- Test automatic make-up valve response to low-level trigger
- Check access hatch seals for leaks
- Confirm pump suction strainer is clear
Annual:
- Full entry and interior cleaning of the tank
- Inspect interior coating or waterproofing for cracks or delamination
- Check all pipe penetrations for leaks
- Verify level sensor calibration and alarm setpoints
- Document findings for health inspection records
Pro Tip: Schedule the annual tank cleaning during the facility’s lowest-use period, typically late fall or early spring in Texas. Document every inspection with photos and a dated log. Health inspectors increasingly ask for maintenance records, and a clean paper trail protects your operating permit.
For more on scheduled maintenance and documentation practices, the pool maintenance guide for commercial properties covers broader system care in useful detail.
Specification checklist for designers and engineers
Use this as a starting point for contract documents. Verify all items against your local health department rules before finalizing.
Specification requirements:
- Surge capacity basis: minimum 1 gal/ft² of pool surface area (confirm local code; some require 2 gal/ft²)
- Overflow system must handle 100% of design circulation flow without deck flooding
- Tank material: concrete (cast-in-place or precast) or corrosion-resistant manufactured unit with interior waterproof coating
- Access: minimum 24-inch hatch, lockable, with ladder or step access for tanks deeper than 4 feet
- Venting: dedicated atmospheric vent terminating above pool water level, exterior to mechanical room
- Controls: high and low level sensors, automatic make-up valve, pump low-level alarm
- Filtration routing: surge return water must pass through filtration before re-entering pool
- Backflow prevention on make-up water supply (see commercial backflow preventer requirements for plumbing code context)
Minimum acceptance tests:
| Test | Acceptance Criterion |
|---|---|
| Level switch trip points | High and low alarms activate at specified setpoints |
| Transfer time | Surge volume returns to pool within local code limit (commonly 20 min) |
| Make-up valve function | Valve opens at low setpoint, closes at normal level |
| Vent flow | No restriction; air moves freely under simulated surge conditions |
| Hatch seal | No visible leakage after 24-hour water hold |
Always coordinate with your local health authority and, for competition facilities, with the governing body’s facility standards before submitting permit drawings.

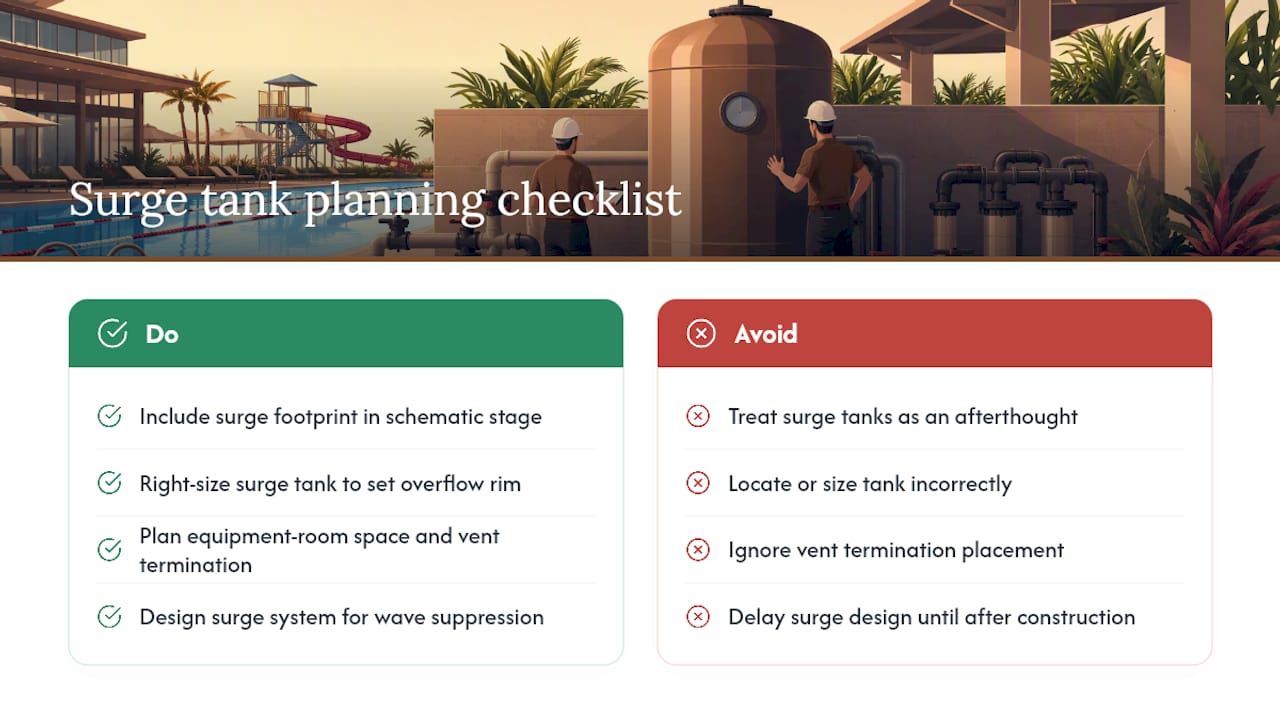

A builder’s perspective on getting surge tanks right
There is a pattern we see on projects where surge tanks were treated as an afterthought: the equipment room ends up too small, the vent terminates in the wrong place, and the facility manager inherits a maintenance problem that was entirely avoidable. The cost of fixing a mislocated or undersized surge tank after construction is not just the tank itself. It often means deck demolition, equipment-room reconfiguration, and a health-inspection delay that pushes the opening date.
The compliance argument is obvious. But the long-term operating cost argument is just as strong. A properly sized surge tank keeps the overflow rim at the correct level, which means surface contaminants get filtered out continuously rather than recirculating. That reduces chemical demand and extends filter media life. Early inclusion of the surge tank footprint in equipment-room planning is one of the highest-leverage decisions on a commercial pool project, and it costs nothing to get right at the schematic design stage.
The aquatic performance case matters too, especially for training and competition facilities. Wave suppression from a correctly sized surge system is measurable in lane conditions. Swimmers and coaches notice. For a facility competing for team contracts or meet hosting, that is a real differentiator.
If you are planning a commercial pool project and want to understand how surge tank design fits into the broader commercial pool design phases, getting the equipment-room layout right from day one is where we always start.
