An infinity edge commercial pool is a custom-engineered swimming pool that creates the illusion of water extending seamlessly to the horizon. One or more walls sit just below the water surface, allowing water to overflow continuously into a concealed catch basin below. That basin acts as a surge tank, collecting the overflow before a closed-loop hydraulic system pumps it back into the main pool. The result is a mirror-like sheet of water that appears to dissolve into the sky, a view, or the surrounding landscape.
You’ll hear these pools called vanishing edge pools or negative edge pools. All three terms describe the same design. The key physical components are:
- A weir wall (the overflow edge) set precisely just below the waterline
- A catch basin or surge tank, sized appropriately in depth and width depending on design requirements, concealed below the overflow edge
- A closed-loop recirculation system that continuously returns overflow water to the main pool
- A secondary pump loop dedicated entirely to the vanishing edge overflow
This is not a decorative finish you add to a standard pool. It’s a fundamentally different engineering system, and understanding that distinction is what separates a successful commercial installation from an expensive problem.
How infinity edge commercial pools work mechanically
The visual magic comes from tight hydraulic engineering. The weir wall must be set at an exact elevation relative to the pool’s water level. Too high, and the sheet of water disappears. Too low, and water dumps into the basin faster than the recirculation pump can keep up, dropping the pool level and breaking the effect.
Infinity edge pools require two integrated hydraulic systems: a primary filtration loop that handles standard pool circulation and a vanishing edge overflow loop that manages the continuous sheet of water over the weir. Both loops must be balanced simultaneously.
The subtle balance between overflow rate, catch basin capacity, and recirculation pump power is critical to sustain a visually perfect infinity edge, demanding calibrated engineering with extremely tight tolerances.
Even minor inconsistencies in water level or flow rate disrupt the mirror-like edge effect. Wind, swimmer displacement, and temperature-driven evaporation all affect water level, which is why the catch basin must be sized to absorb surge volume from all of those variables. Undersizing the catch basin causes system failures or overflow flooding at the equipment pad. This is the single most common engineering mistake on infinity edge projects.
Why infinity edge pools are worth it for commercial properties
The aesthetic case is obvious. The business case is just as strong.
Infinity edge pools have become the gold standard in luxury commercial pool design, serving as architectural focal points that increase property desirability and market value. For hospitality developers and high-end residential communities, the pool isn’t just an amenity. It’s a marketing asset that shows up in every photo, every review, and every booking decision.
Here’s what the benefits actually look like in practice:
- Visual appeal: The seamless horizon integration creates a photogenic centerpiece that photographs beautifully for marketing materials and social media
- Property value: The unique architectural statement commands premium positioning in both sales and rental markets
- Guest satisfaction: Commercial properties with infinity edge pools report stronger demand, higher occupancy rates, and enhanced branding
- Water quality: The overflow trough acts as a continuous surface skimmer, pulling debris off the waterline before it sinks, which keeps the main pool cleaner than a standard skimmer system
- Experiential impact: On elevated or scenic sites, the pool becomes an immersive experience rather than just a place to swim
The water quality benefit is one that surprises most developers. Because the weir continuously skims the surface, the main pool sees less debris load, which reduces chemical demand and extends filter cycles. That’s a real operational advantage, not just a visual one. For commercial outdoor living spaces built around a resort-style experience, it’s the kind of detail that separates a good property from a great one.
What does an infinity edge pool actually cost?
Budget for a meaningful premium over a standard commercial pool. Infinity edge pools generally cost more than standard inground pools, driven by the catch basin construction, specialized hydraulic systems, and the structural engineering required to support the overflow wall. Installation timelines also tend to be longer than standard pool builds, reflecting the added complexity of infinity edge pools.
The ongoing costs are where many developers get surprised:
- Maintenance time: Infinity edge pools require 2–3 hours per week of dedicated maintenance versus roughly 1.5 hours for a standard commercial pool
- Energy costs: The additional pump system running continuously pushes energy costs 45–60% higher than a comparable standard pool
- Catch basin cleaning: The basin needs regular dedicated cleaning separate from the main pool filter, since it collects all surface debris from the overflow
- Specialized service: Not every pool service company has the expertise to balance dual hydraulic loops, so commercial operators often pay a premium for qualified technicians
The energy cost increase is the line item that catches most facility managers off guard. Running a second pump continuously adds up fast, especially in Texas where pools operate year-round. Factor that into your operating budget before the project breaks ground.
Key things to think through before you install one
Site selection is the first decision, and it’s the one that determines whether the investment pays off. Infinity edge pools work best on elevated, waterfront, or hillside sites with expansive views. A flat site without a compelling view horizon doesn’t realize the full visual benefit, and the premium cost becomes harder to justify.
Beyond site, here’s what to work through before committing:
- Space for the catch basin: The basin runs the full length of the overflow edge and needs adequate clearance below grade. Tight sites can make this difficult or expensive
- Structural load: The overflow wall and basin add structural complexity that requires a qualified structural engineer, not just a pool contractor
- Contractor expertise: Select a contractor with documented experience in advanced hydraulic and structural engineering for infinity edge builds. The tolerances are too tight for a learning curve on your project
- Safety design: The disappearing edge creates a visual ambiguity that requires careful attention to non-slip surfaces, clear water depth markings, and controlled access points. Properly engineered infinity pools are safe, but safety features must be designed in from the start, not added later
- Regulatory compliance: Commercial pools in the US must meet ADA accessibility requirements, local health department codes, and state-specific commercial pool regulations. Infinity edge designs add complexity to barrier and access compliance, so engage your local authority early
Pro Tip: Before finalizing the pool location, stand at the proposed overflow edge and photograph the view at water level. If the horizon line is compelling in a photo, the infinity effect will be stunning. If it isn’t, reconsider the orientation.
Budget planning should account for both the construction premium and the higher operating costs. A project that pencils out on construction cost alone but strains the operating budget creates problems for facility managers down the road.
What Longhorn Pools brings to infinity edge projects in Central Texas
Building an infinity edge pool in the Texas Hill Country isn’t the same as building one anywhere else. The terrain, soil, and climate all create specific challenges that require local knowledge, not just general pool construction expertise.
At Longhorn Pools, we’ve learned that the Hill Country’s expansive clay soils and dramatic grade changes require more structural engineering than most infinity edge projects elsewhere in the country. Getting the catch basin geometry right in shifting soil is where the project either holds up or doesn’t.
Here’s what we focus on for commercial infinity edge projects in the Austin area:
- Soil and terrain assessment: Hill Country caliche and clay soils expand and contract with moisture, which affects the structural integrity of the overflow wall and basin over time. We engineer for that movement from the start.
- Phased design approach: Commercial clients get a structured design process covering hydraulic engineering, structural review, and regulatory compliance before a shovel hits the ground. See how we approach commercial pool design phases for a full breakdown.
- Material selection for Central Texas: The intense UV exposure and heat in Austin accelerate surface degradation. We specify materials rated for that environment, and our pool construction material guide covers the options in detail.
- Water chemistry management: Central Texas water is hard, and the continuous overflow system concentrates minerals in the catch basin faster than in a standard pool. We build maintenance schedules around that reality.
- Maintenance planning: We set up commercial clients with a clear maintenance protocol before the pool opens, covering basin cleaning frequency, hydraulic rebalancing schedules, and seasonal adjustments for the Texas climate.
| Consideration | Standard commercial pool | Infinity edge commercial pool |
|---|---|---|
| Construction premium | Baseline | higher than baseline |
| Build timeline | — | longer than standard build timelines |
| Weekly maintenance | ~1.5 hours | generally more hours required |
| Energy cost increase | Baseline | significantly higher |
| Site requirement | Flexible | Elevated or scenic view preferred |
Pro Tip: For Hill Country commercial projects, budget an additional structural engineering review specifically for the catch basin footings. The grade changes that make these sites visually spectacular are the same ones that create the most soil movement risk.
For developers exploring how infinity edge pools fit into a broader hotel pool design strategy, the site-specific engineering is what separates a pool that looks great in renderings from one that performs flawlessly for years.
Maintenance challenges unique to commercial infinity edge pools
Standard pool maintenance routines don’t cover everything an infinity edge system needs. The dual hydraulic loops, the catch basin, and the precision water level requirements all create maintenance demands that go beyond what a typical commercial pool service handles.
The catch basin is the most maintenance-intensive component. It collects every piece of surface debris that flows over the weir, and it does so continuously. Without a dedicated cleaning schedule, debris accumulates in the basin, clogs the recirculation pump intake, and disrupts the flow rate that maintains the edge effect. The overflow trough requires regular cleaning completely separate from the main pool filter, and skipping it leads to mechanical damage, not just aesthetic problems.

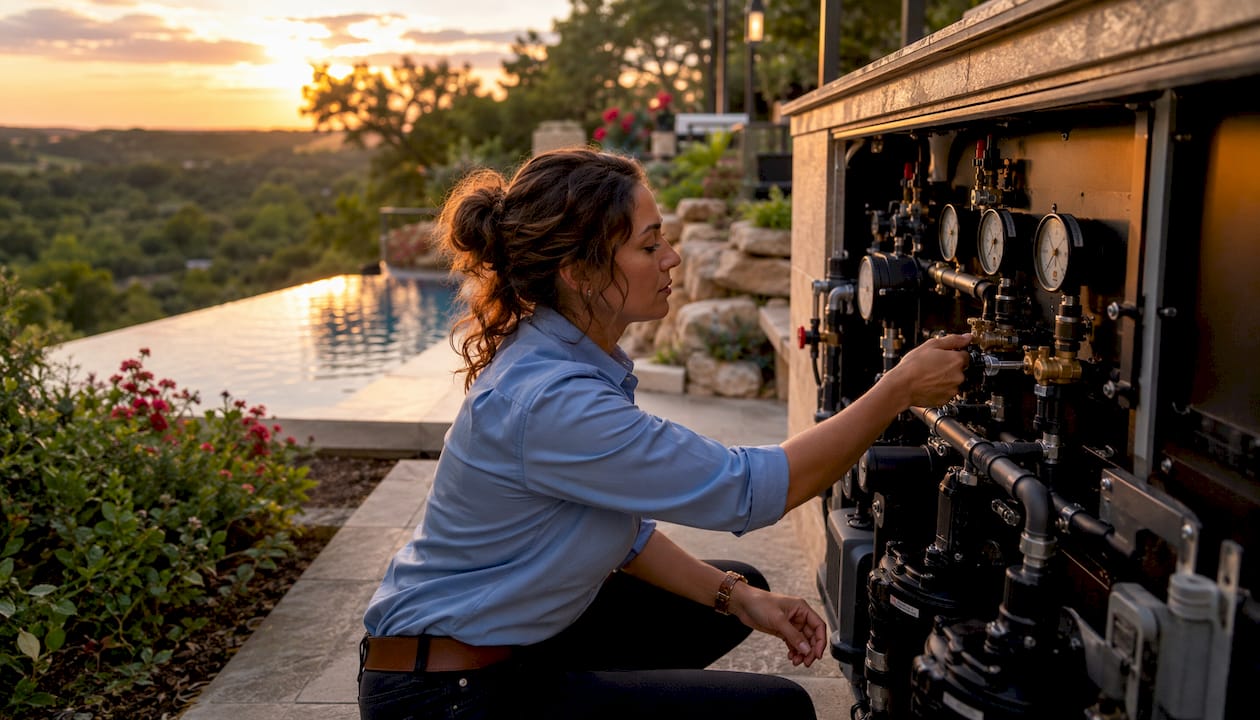

Water level management is the other daily reality. The weir wall tolerance is tight enough that evaporation, swimmer activity, and wind can all shift the water level enough to affect the edge appearance. Commercial operators need an auto-fill system calibrated to maintain that level within a narrow band, and someone on staff who knows how to recognize when the hydraulic balance is drifting. For practical guidance on keeping the water chemistry and circulation dialed in, our Austin pool maintenance guide covers the routines that work in Central Texas conditions.
Ready to build an infinity edge pool that actually performs?
Longhorn Pools designs and builds custom infinity edge commercial pools across Austin and the Texas Hill Country. From hydraulic engineering to long-term maintenance planning, we handle the complexity so your project delivers the experience you’re investing in. Start with our commercial design process or explore our infinity edge construction guide to see how we approach these builds from the ground up.
Key Takeaways
An infinity edge commercial pool requires precision hydraulic engineering, a properly sized catch basin, and significantly higher operating costs than a standard pool, but delivers unmatched property value and guest experience on the right site.
| Point | Details |
|---|---|
| Engineering precision matters | The weir wall must sit 1–2 inches below the waterline; even slight deviations break the edge effect. |
| Expect a real cost premium | Infinity edge builds typically cost $20,000–$35,000 more than standard pools, with installation timelines ranging from 12–20 weeks. |
| Operating costs run higher | Energy costs run 45–60% higher and weekly maintenance takes 2–3 hours versus 1.5 for standard pools. |
| Site selection drives ROI | Elevated or scenic sites maximize the visual payoff; flat sites without views rarely justify the premium. |
| Catch basin care is non-negotiable | The basin needs its own cleaning schedule, separate from the main filter, to prevent pump damage and maintain the edge effect. |
