Do You Need a Retaining Wall for Your Pool?

If your backyard drops more than a modest grade from one side of the pool to the other, you probably need a retaining wall. It holds back the soil, keeps your pool deck from cracking or sinking, and manages runoff so water doesn’t pool where it shouldn’t. The first move: grab a level and a stake, measure the actual grade change across your pool footprint, and get a builder or engineer to look at the site before you finalize any design.

TL;DR:

A slope greater than two feet across the pool footprint or soil close to the pool edge generally requires a retaining wall to prevent structural issues.

Reinforced concrete or block walls are suitable for tall, load-bearing scenarios near decks, while segmental blocks are better for shorter, decorative applications.

Proper drainage, including gravel backfill, perforated pipes, and weep holes, is essential to prevent water buildup behind the wall and avoid failure.

Costs for retaining walls typically range from $4,000 to over $20,000, influenced by height, material choice, site difficulty, and permits.

A comprehensive design-build approach ensures proper integration of the wall with the pool, preventing costly repairs caused by poorly coordinated construction.

When Do You Need a Retaining Wall for a Pool?
Which Wall Type Fits Your Site?
What Drainage and Engineering Does a Pool Retaining Wall Need?
What Does a Pool Retaining Wall Cost?
Design Options That Add Real Value
How Does a Builder Evaluate a Pool Retaining Wall Site?
Why Design-Build Beats Splitting the Job Between Trades
Get Your Pool and Retaining Wall Built Right the First Time
Where to Learn More
Sources

When Do You Need a Retaining Wall for a Pool?

The line between “you’re fine” and “you need a wall” usually comes down to how much your yard actually slopes. A common rule of thumb puts it around 2 feet: grade changes under that can often be handled with simple regrading, but anything beyond it typically calls for a retaining wall, and sometimes an engineer’s sign-off too.

It’s not just about the slope itself. Proximity matters just as much. A steep grade 30 feet from the pool is a landscaping problem. The same slope 3 feet from the pool shell is a structural one, especially once you add the weight of a deck, pavers, or an outdoor kitchen sitting on top of that soil.

Soil type changes the math too. Sandy or loose fill soil shifts more under load and moisture, while dense clay holds its shape longer but swells and contracts with rain cycles, which stresses walls differently over time.

Before you call anyone, run these quick checks yourself:

Measure the grade drop across the pool’s footprint with a level and stake, not by eyeballing it.
Watch where rainwater actually flows during a storm. That tells you more than any diagram.
Note whether your soil is sandy, rocky, or heavy clay. It affects which wall system works.
Check how close the highest point of the slope sits to the pool’s edge.

If two or more of those point toward “steep and close,” plan on a wall.

Which Wall Type Fits Your Site?

Not every retaining wall is built the same way, and the right choice depends on height, load, and how much moisture the site deals with. Poured concrete and reinforced CMU block are the workhorses for taller walls or anything carrying real structural load, like a deck or a second story of yard above it. They’re not cheap, but they’re built to hold.

Segmental retaining walls, the interlocking block systems you’ve probably seen at garden centers, work well for shorter terraces and decorative touches. They’re often sold as a weekend DIY project, but that pitch doesn’t hold up near a pool. Once you’re dealing with real soil loads close to a pool shell, SRW systems usually need professional installation with geogrid reinforcement to keep from shifting.

For homeowners who want the wall itself to look like part of the landscape, natural stone and precast panels give you a premium finish without changing the underlying structure. Gabion walls, wire cages filled with stone, are worth a look too. They drain almost effortlessly, which matters more than most people realize.

Quick guide to matching wall type to site:

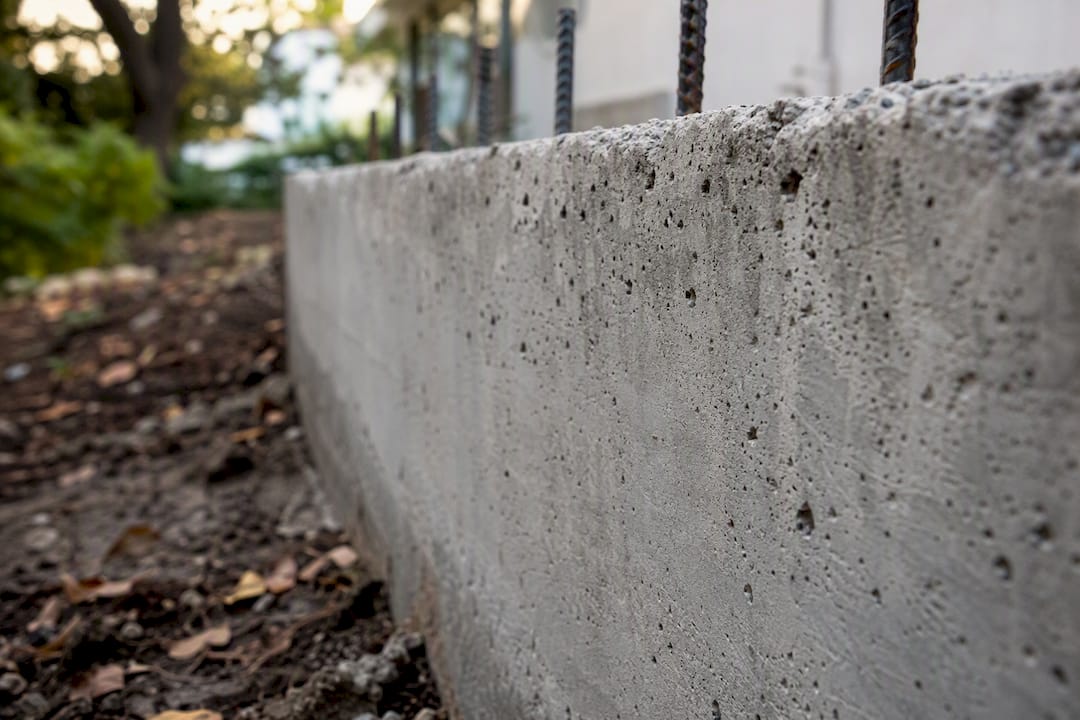

Poured concrete or reinforced block: tall walls, heavy loads, decks or structures above
Segmental block (SRW): shorter terraces, decorative use, professionally installed near pools
Natural stone or precast panels: premium look, moderate height, good for visible walls
Gabion: strong natural drainage, works well on wetter sites or heavy runoff areas

What Drainage and Engineering Does a Pool Retaining Wall Need?

Here’s the part that trips people up: the wall itself rarely fails. Water trapped behind it does. Clean gravel backfill, a perforated drain pipe or French drain, and weep holes aren’t optional extras. They’re what keeps hydrostatic pressure from building up and pushing the wall out of position over months or years.

Footings matter just as much, especially when the wall sits close to a pool shell. Rebar placement, footing depth, and how the soil settles underneath both structures need to work together, not against each other. A wall and a pool shell that settle at different rates will eventually show it, usually as a crack right where you don’t want one.

Here’s roughly how a project moves through the technical stages:

Site survey and soil check to confirm grade, drainage direction, and soil type.
Engineering review if the wall crosses your local height trigger, commonly somewhere between 2 and 4 feet, though it varies by building department.
Permit application, filed alongside or ahead of pool permits so setbacks and inspections line up.
Footing and drainage installation, done before the wall face goes up.
Wall construction, followed by backfill and a final inspection.

Pro Tip: Walk the wall after every heavy rain for the first year. Damp patches, small cracks, or a slight lean are cheap to fix early and expensive to ignore.

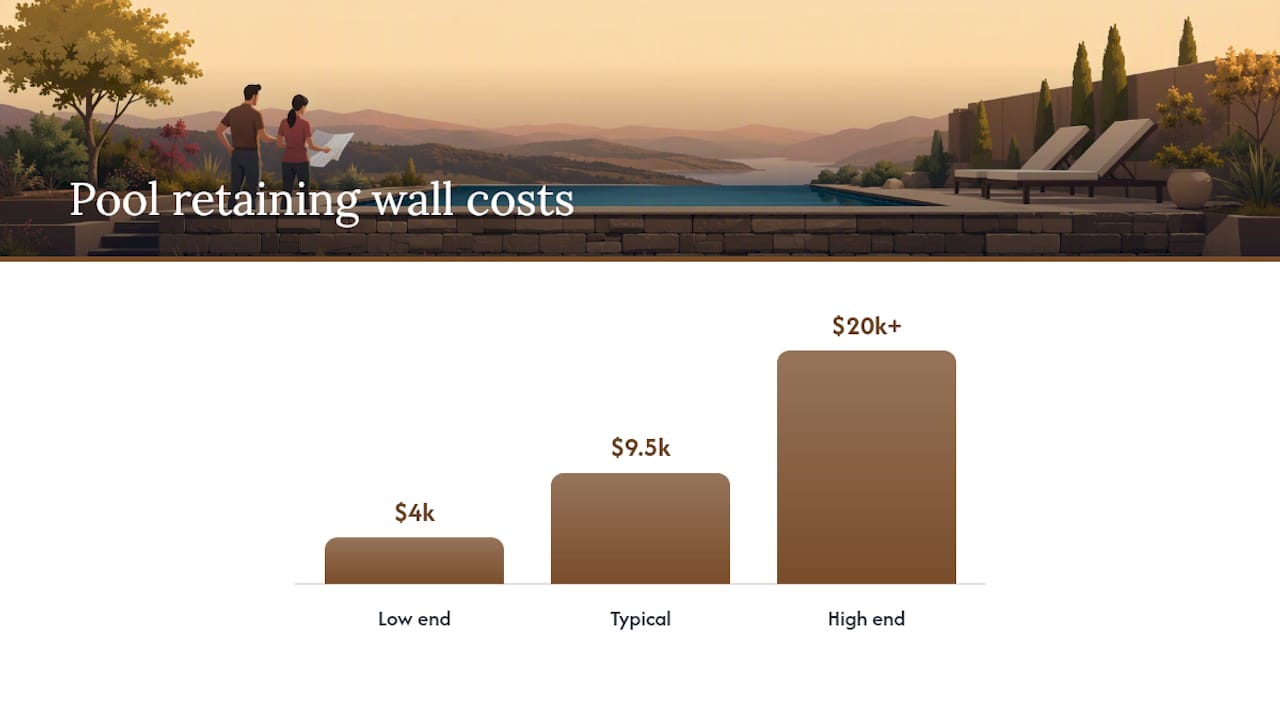

What Does a Pool Retaining Wall Cost?

Budgeting for a retaining wall means planning for a range, not a single number. Typical residential pool retaining walls run roughly $4,000 on the low end up to $20,000 or more, with most projects landing closer to $9,000 to $10,000 once you factor in a realistic height, length, and site.

What pushes a quote up or down:

Height and length of the wall, since both drive material and labor volume directly.
Material choice, with poured concrete typically costing more than segmental block.
Site difficulty, including access for equipment and how much excavation is needed.
Drainage requirements, which add cost but prevent far more expensive failures later.
Permits and engineering fees, which vary by city and by wall height.

Retaining walls aren’t a minor line item, either. Because they’re structural work requiring excavation, drainage, and often a permit, they can add a noticeable percentage to your total pool project cost.

If your slope is mild, regrading alone can sometimes cost less than a wall, though it’s not a fix for anything beyond a modest grade change. For accurate bids, insist on an actual site visit, share what you know about your soil, and ask for engineered drawings rather than a rough sketch.

Design Options That Add Real Value

A retaining wall doesn’t have to just sit there holding back dirt. Built right, it becomes part of the pool’s personality.

Cascades, spillways, and small waterfalls can be built directly into the wall face, turning a structural necessity into a focal point.
Bench seating or built-in planters add usable space, though they add cost and complexity worth weighing against your budget.
Terracing into multiple shorter walls instead of one tall one can keep each section under engineering thresholds while creating natural planting benches.
Finish choice affects upkeep: natural stone needs occasional resealing, while poured concrete with a stucco finish holds up with less maintenance.

How Does a Builder Evaluate a Pool Retaining Wall Site?

When Longhorn Pools walks a sloped site, the process starts with grade measurement, a soil check, and mapping where water actually moves during rain, not where a drawing says it should.

Depending on what that reveals, we’ve used everything from terraced SRW systems for gentler Hill Country slopes to poured reinforced walls with integrated water features on steeper lots. If the numbers cross local engineering thresholds, or the wall sits close enough to the pool shell to affect its footing, we bring in a structural engineer before design moves forward, not after.

Why Design-Build Beats Splitting the Job Between Trades

Treating the wall and the pool as one connected system, not two separate jobs, avoids the classic conflict between footing depth, waterproofing, and drainage lines. Cutting corners on drainage or engineering to save money upfront almost always costs more later in repairs. If your site has real grade change, a design-build contractor who handles both pieces together is worth the extra conversation before you sign anything.

— Mark

Get Your Pool and Retaining Wall Built Right the First Time

Longhorn Pools handles retaining walls as part of the pool build itself, not as a separate afterthought bolted on by a different contractor. That’s the real advantage over piecing the job out to trades who never talk to each other: one team coordinates the footing, drainage, and pool shell so nothing fights against something else once the backfill goes in.

Whether you’re planning new construction on a sloped Hill Country lot or adding a wall to solve drainage problems on an existing pool, the process starts the same way: a site survey, a soil check, and honest numbers before anything gets dug. If you’re weighing options for a new build, the Signature Series shows what’s possible when the wall and pool are designed together from day one. Ready to find out what your slope actually needs? Request a site visit and estimate, and we’ll walk your yard with you before you spend a dollar on design.

Where to Learn More

For deeper technical detail beyond this guide, River Pools’ breakdown of sloped-yard pool walls covers materials and costs, Creative Edge Pools’ guide explains engineering triggers, and Re & Sons Landscaping breaks down how walls affect overall project budgets.
