5 by 10 Foot Pad: Where to Put Pool Equipment to Avoid Rework

Put your pool equipment on a dedicated concrete pad within a recommended distance from the pool, positioned at or slightly below the water level, and raised a few inches above surrounding grade for drainage. Follow the manufacturer’s clearances and your local electrical code, and leave real walking room around the pad. Everything else in equipment pad design is a variation on that one rule.

TL;DR:

A concrete pad of at least 4 by 4 feet is essential for stability, with 5 by 10 feet recommended if upgrading to additional equipment later.

The pad must be slightly below or level with the pool water surface and raised 3 to 4 inches above grade to facilitate priming and runoff drainage.

Proper component sequencing, spacing, and future-proof planning for upgrades prevent costly rework and ensure ease of maintenance.

All electrical and gas connections require permits, code compliance, and professional installation, with attention to ventilation and safety standards.

Getting Pool Equipment Placement Right Starts With the Pad
How Far Should Pool Equipment Be From the Pool?
Should the Equipment Pad Sit Above or Below Pool Level?
Plumbing Layout: Getting the Component Order Right
Ventilation and Electrical Safety on the Equipment Pad
Reducing Pool Pump Noise Without Sacrificing Airflow
Planning the Pad for Maintenance and Future Upgrades
Permits and Code Checks Before You Break Ground
Mark’s Take: The Mistakes That Cost the Most Later
How Longhorn Pools Handles Pad Design and Placement
Sources

Getting Pool Equipment Placement Right Starts With the Pad

Everything about pool equipment placement traces back to what the equipment sits on. A lot of homeowners treat the pad as an afterthought — something the contractor pours in an hour and then forgets. That’s how you end up with a pump wedged against a fence three years later because there was never room for a salt cell.

A reinforced concrete slab on a compacted granular base outlasts composite pads set straight on dirt, which shift, crack, and trap water underneath as the soil settles. The base matters more than people expect: proper compaction stops the pad from sinking unevenly, and mid-depth rebar keeps hairline cracks from turning into structural ones.

Size is where most homeowners get shortchanged. A 4 by 4 foot pad might handle your pump and filter today, but it leaves zero room for a heater, a saltwater chlorine generator, or automation gear down the line.

Minimum functional footprint: 4 feet by 4 feet for a basic pump and filter setup
Recommended footprint: 5 feet by 10 feet if you want room to add a heater, salt cell, or automation panel later
Raise the slab 3 to 4 inches above grade to shed water
Use a compacted granular base and mid-depth rebar for long-term stability

Larry’s Pool’s pad setup guide backs this up directly: an undersized pad is one of the most common long-term liabilities in backyard pool systems.

How Far Should Pool Equipment Be From the Pool?

Twenty to twenty five feet from the pool’s edge is the sweet spot. That distance keeps plumbing runs short enough to avoid excessive pressure loss, while still giving you enough separation for noise and code compliance. ProTuff Products confirms this range balances hydraulic efficiency against practical siting.

The National Electrical Code sets a hard floor of 5 feet from the water’s edge for equipment placement, and that’s a minimum, not a target. Beyond code, the real trade-off is closer versus farther:

Closer to the pool means less head loss in the plumbing and less heat loss on heated systems
Farther from the pool, especially near the house, usually means more noise exposure for anyone sitting on a patio
Siting equipment near the house calls for a properly rated disconnect, correct clearances, and GFCI protection on the circuit

If you’re weighing equipment placement against a planned fence line or pool barrier, check pool fence safety requirements before you pour anything, since setbacks can shift your options.

Should the Equipment Pad Sit Above or Below Pool Level?

Slightly below or level with the pool’s water surface is the better answer for most residential setups. That elevation helps the pump prime faster because it isn’t fighting excessive suction lift. A pad set too high above the water line forces the pump to pull water up and over a longer vertical distance, which stresses the motor and slows priming, especially after a power outage or a season of winterizing.

That doesn’t mean the pad should sit flush with the yard. Raise it 3 to 4 inches above the surrounding grade and slope the area around it so runoff drains away instead of pooling under the equipment. If your yard already struggles with drainage, the patio slope drainage guide from GC Signature Outdoors covers the grading principles that keep water moving in the right direction.

Plumbing Layout: Getting the Component Order Right

Every pool system follows the same equipment sequence, and getting it out of order is one of the more expensive mistakes homeowners make. PoolTechResources lays out the standard flow clearly:

Pump pulls water from the pool and pushes it through the system
Filter removes debris and fine particles before the water gets heated
Heater raises water temperature after filtration, never before, since unfiltered water fouls heat exchangers
Sanitizer, whether a chlorinator or salt cell, treats the water last before it returns to the pool

Spacing between components matters as much as their order. Leave roughly 12 inches of clearance behind pumps for service access, and aim for 30 to 36 inches of walk-around room where the yard allows it. ProTuff’s spacing guidance also recommends leaving several straight pipe diameters before the pump’s suction inlet, which prevents turbulence and cavitation that can shorten pump life. Place valves where you can reach them from the front of the pad, not wedged against a wall.

Ventilation and Electrical Safety on the Equipment Pad

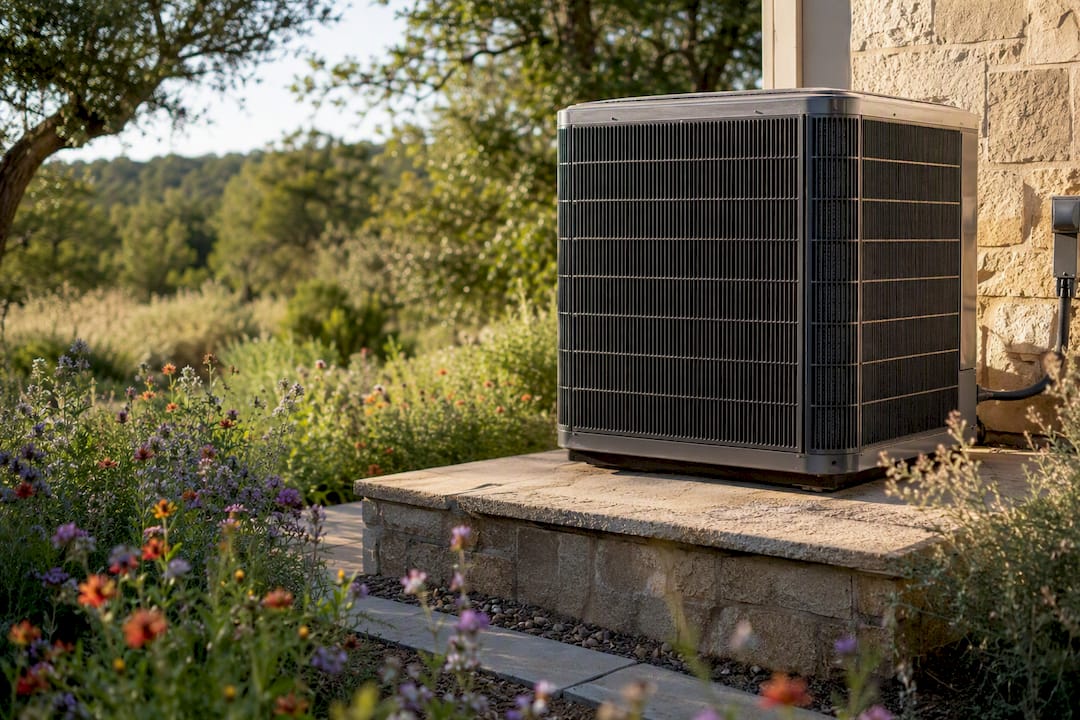

Gas heaters and heat pumps both need airflow to function, and sealing them into an airtight enclosure is a fast way to void a warranty. Heat pumps typically require about 24 inches of clear space at the evaporator coil, and restricting that airflow can cut efficiency by up to 30 percent, according to installation guidance from Discount Pool Heating. If you’re still choosing a heater type, our pool heater guide for Austin homeowners walks through the placement needs for each option.

On the electrical side, every piece of metal equipment on the pad needs to be bonded, and the pump circuit needs GFCI protection along with a disconnect that’s visible from the pad itself. Plan conduit runs and junction boxes before the concrete gets poured. Hire licensed electricians and gas fitters for these connections. This isn’t a DIY corner to cut.

Reducing Pool Pump Noise Without Sacrificing Airflow

The instinct to box in a loud pump is understandable, but it backfires. InTheSwim’s guide to noisy pump solutions is blunt about it: airtight soundproof boxes trap heat, restrict airflow, and shorten equipment life without actually solving the noise problem.

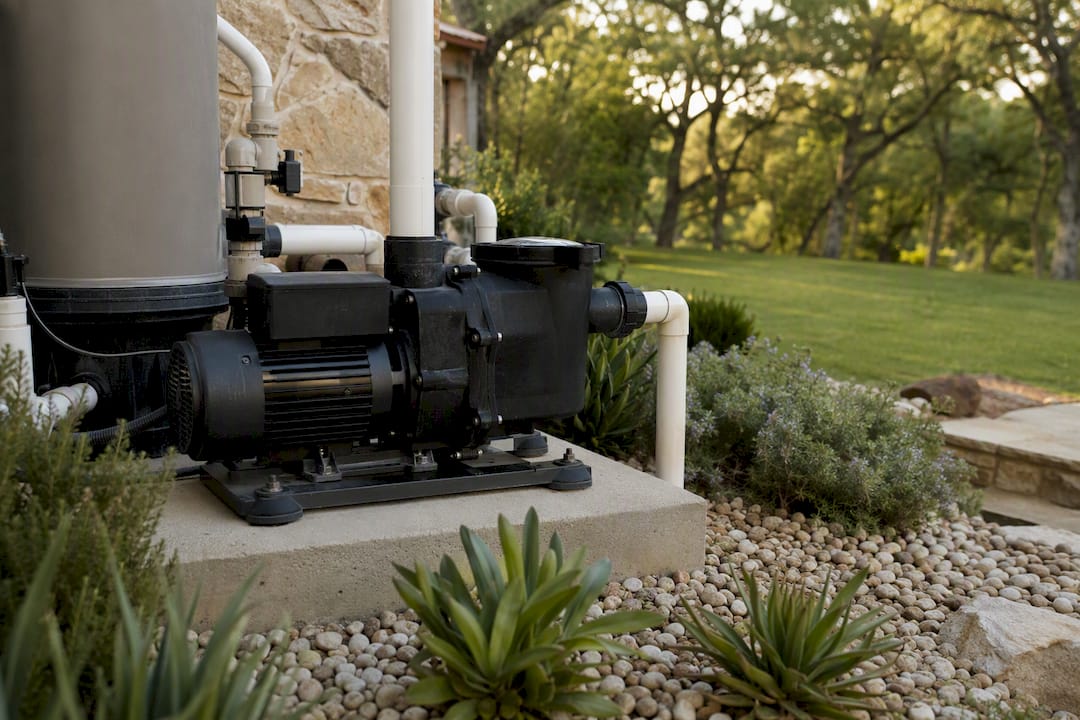

Better options include vibration isolation pads under the pump base, louvered screening that blocks sightlines while letting air move, and simple distance combined with dense plantings. Orient the noisiest equipment face away from patios and windows where people actually sit. Design any screening with removable panels so a technician isn’t fighting your landscaping every time the filter needs cleaning. A variable-speed pump also runs quieter at lower flow rates than a single-speed unit, and it uses less electricity doing it.

Planning the Pad for Maintenance and Future Upgrades

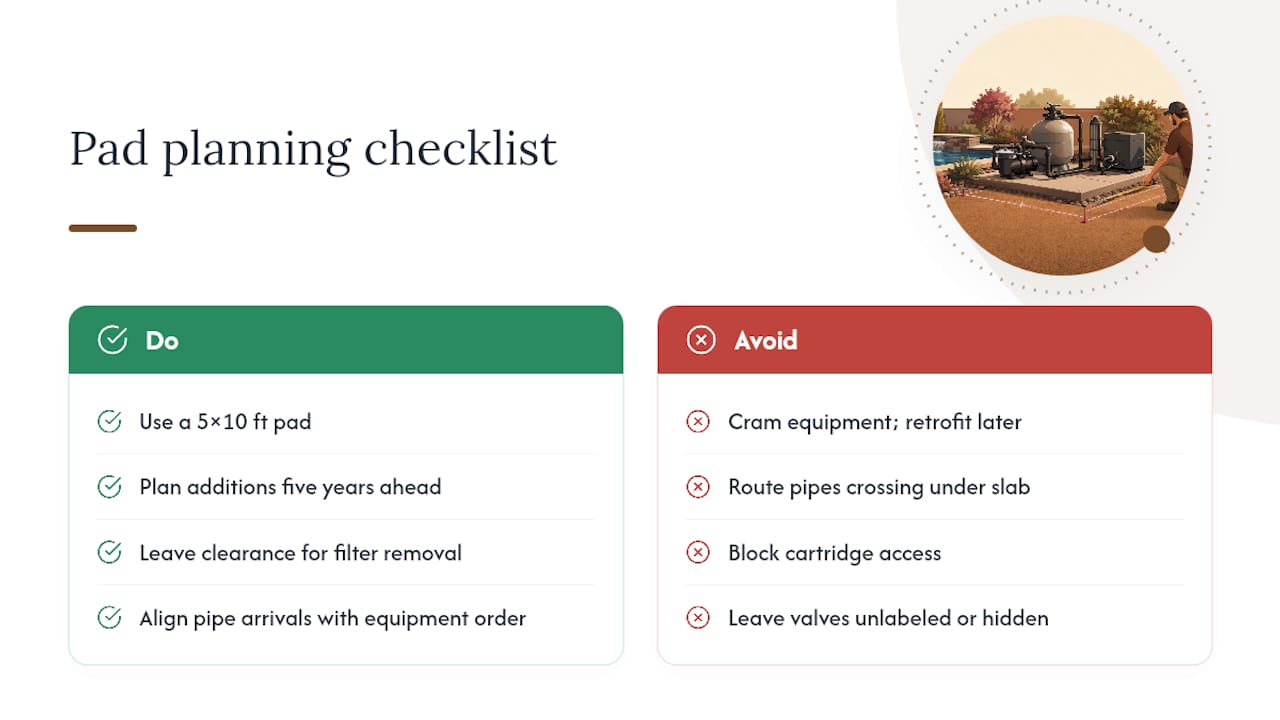

Pro Tip: Before you finalize pad dimensions, ask yourself what you might add in the next five years. A salt cell, a heat pump, or an automation panel all need pad space, and retrofitting a cramped layout costs far more than building it in from the start.

Leave enough clearance to pull a filter cartridge straight out without disassembling half the pad. A 5 by 10 foot pad gives you room for that plus a future salt chlorine generator or automation controller. Make sure pipe arrivals line up with equipment order so nothing crosses underneath the slab. Label valves and leave a few inches of exposed stub pipe at each connection, so the next technician (or you, in three years) isn’t guessing what connects where. Our pool build planning checklist walks through exactly this kind of forward planning.

Permits and Code Checks Before You Break Ground

Most jurisdictions require a permit for new electrical circuits, disconnects, and any gas line work tied to a heater. Confirm which year of the National Electrical Code, specifically Article 680, your local authority has adopted, since clearance and bonding requirements have shifted across editions. Ask about local gas code provisions for heater exhaust and clearances too.

Before work starts, request written layout drawings from your contractor, confirm all metal equipment will be bonded, and make sure the equipment disconnect will be visible from the pad. PoolTechResources notes that a visible disconnect and GFCI protection are near universal requirements, but your local AHJ has the final word. For a broader look at what Austin-area homeowners specifically need to check, see our regulations guide.

Mark’s Take: The Mistakes That Cost the Most Later

The costliest mistakes I see aren’t code violations. They’re small pad footprints and pipe runs installed out of sequence, both of which force expensive rework later. A good contractor designs the trench and pad with upgrades in mind from day one, insisting on room for automation and a salt cell before you ever ask for one. That’s the difference between planning and patching.

— Mark

How Longhorn Pools Handles Pad Design and Placement

Getting the pad right the first time saves you thousands in rework, and that’s exactly where Longhorn Pools’ planning process pays off. We design equipment pad layouts that balance hydraulic efficiency, code compliance, and real service access, so you’re not fighting your own backyard five years from now when you want to add a heater or automation.

Every custom build or renovation we handle in Austin and the Texas Hill Country starts with a site review that accounts for terrain, soil conditions, and where your equipment can actually breathe and drain properly. If you’re planning a new pool or a renovation and want a pad layout that won’t need a redo, download our Pool Build Planning Checklist or reach out to schedule a consultation and site review.
