An infinity edge pool is a swimming pool engineered with one or more edges that create a smooth, vanishing water surface by overflowing into a hidden catch basin below. The industry term is “vanishing edge pool,” and you will hear both names used interchangeably by contractors. What separates this pool from every other backyard feature is the engineering behind it. The vanishing edge wall must be level within 1/16th of an inch and reinforced to handle hydrostatic pressures that exceed those of a standard pool wall. Get that tolerance wrong by even an inch, and the illusion disappears entirely. This infinity edge pool construction guide covers everything you need to know before breaking ground.
What does an infinity edge pool construction guide actually cover?
Building an infinity edge pool means building two pools at once. You have the main swimming shell, and you have the catch basin below the vanishing edge wall. Both must work together as one unified hydraulic system integrating soil conditions, structural design, and water flow from day one. That is what makes this project fundamentally different from a standard inground pool. The visual payoff is dramatic, but the engineering behind it is what keeps the water flowing smoothly and the edge looking perfect.
What site conditions must you evaluate before building?
Site evaluation is the first real decision point in building infinity pools, and skipping it is the most expensive mistake you can make. The slope, soil stability, and view orientation all determine whether your property can support this type of pool at all.
Here is what needs to be assessed before any design work begins:
- Soil stability and slope: Expansive clay soils common in Central Texas can shift under the weight of a concrete shell. A geotechnical study confirms whether the ground can support the structure without settling.
- View orientation: The edge should face the most compelling view on your property. Critically, orientation decisions should account for the swimmer’s eye level when in the water, not standing height. The horizon line looks completely different from those two vantage points.
- Drop elevation: A minimum vertical drop of 4 to 6 feet from the pool rim to the terrain below is needed to create a meaningful infinity illusion. Less than that and the effect reads as a simple spillover.
- Permits and regulatory checks: Most municipalities require structural engineering drawings, grading plans, and drainage approvals before issuing a pool permit. Austin and the surrounding Hill Country communities each have their own requirements.
- Multi-disciplinary team: Early collaboration among structural engineers, landscape architects, and pool contractors produces better results than bringing each party in separately after decisions are already made.
Pro Tip: Have your pool contractor walk the site with a structural engineer before you finalize the pool’s position. Moving the edge wall six feet in either direction can mean the difference between a stunning view and a wall of fence.
Understanding the pool design phases before you hire anyone will help you ask the right questions from the start.

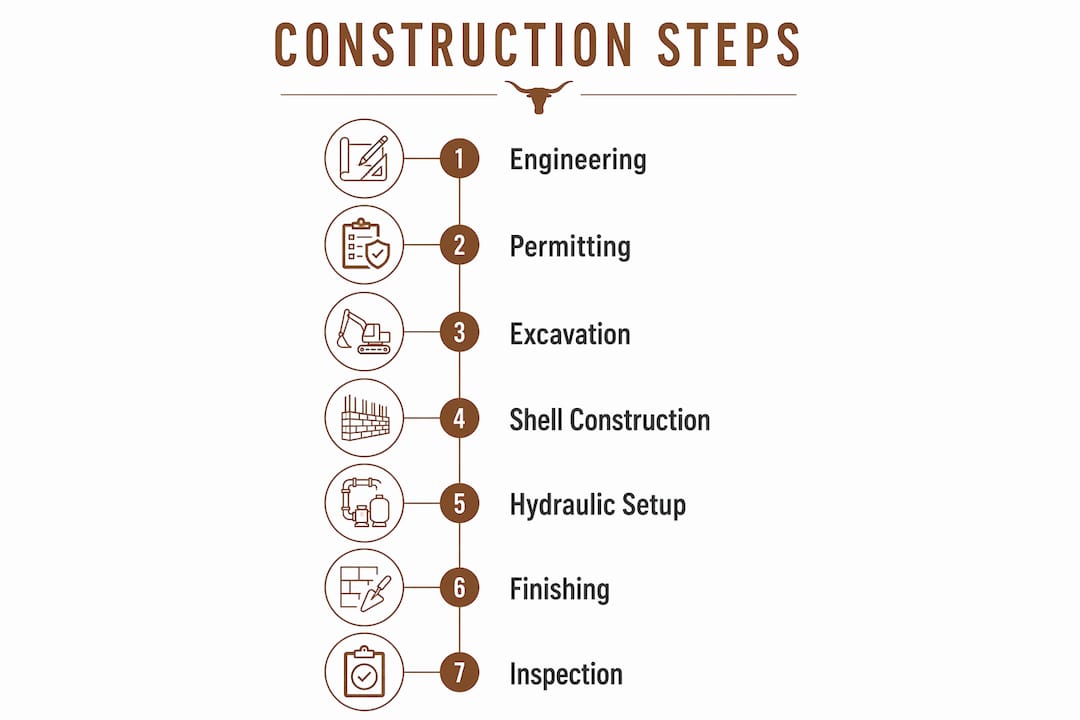

How is an infinity edge pool constructed, step by step?
Concrete or gunite construction is used for 90–95% of infinity pools because no other material can maintain the structural rigidity and leveling tolerance the vanishing edge wall demands. The construction process is longer and more technical than a standard pool. Expect 4 to 6 months from groundbreaking to water, with the engineering phase alone taking 2–4 weeks.
Here is how the process unfolds:
- Excavation: The main pool shell and the catch basin are excavated simultaneously. The catch basin sits below and adjacent to the vanishing edge wall.
- Steel rebar installation: Rebar is placed throughout both shells. The vanishing edge wall gets tighter rebar spacing and greater concrete thickness than standard walls due to higher hydrostatic pressure.
- Gunite application and curing: Gunite is pneumatically applied over the rebar framework. Curing takes several weeks. Rushing this stage causes cracking.
- Vanishing edge wall leveling: This is the most critical step. The top of the edge wall is set to within 1/16th of an inch using laser levels. Any deviation ruins the water sheet appearance.
- Catch basin construction: The basin is sized to handle surge flow, water in transit through pipes, and displaced water from swimmer activity. An undersized catch basin is one of the most common and costly construction errors.
- Plumbing and hydraulic system: Pumps, return lines, and overflow pipes are installed. Pipe sizing and pump capacity are calculated based on the linear footage of the edge.
- Waterproofing and surface finishing: Plaster, pebble finish, or tile is applied to both the main pool and the catch basin interior.
Pro Tip: Ask your contractor to show you the hydraulic calculations before construction starts. If they cannot produce them, that is a red flag.
Choosing the right pool construction materials for both the shell and the finish coat affects long-term durability, especially in Texas heat.
| Construction phase | Typical duration |
|---|---|
| Engineering and permitting | 2–4 weeks |
| Excavation | 3–5 days |
| Steel and gunite | 2–3 weeks |
| Curing | 3–4 weeks |
| Plumbing and hydraulics | 1–2 weeks |
| Finishing and startup | 1–2 weeks |
What hydraulic requirements keep the infinity effect working?
The visual magic of a vanishing edge depends entirely on hydraulic precision. Pump flow rates of roughly 4 to 10 gallons per minute per linear foot of edge are required to maintain a smooth, unbroken water sheet. A 20-foot edge therefore needs roughly 80 to 200 gallons per minute in circulation. That is a significant mechanical load, and it has to be designed correctly from the start.
Key hydraulic requirements to get right:
- Edge wall levelness: Even a minor deviation in the edge height creates an uneven water sheet. Water always finds the low spot, which means one section of the edge runs heavy while the rest runs thin or dry.
- Catch basin volume: The basin must accommodate the water in transit through all pipes, the surge during pump startup, and the volume displaced when swimmers enter the pool. Undersizing this by even a few hundred gallons causes overflow and water damage to the surrounding structure.
- Pump and pipe sizing: Pumps must handle both the main pool circulation and the overflow return from the catch basin. These are separate hydraulic loops that need to be balanced against each other.
- Dynamic water-in-transit volume: Hydraulic balance must account for the water moving through pipes at any given moment, which changes during active pool use. Ignoring this causes the edge flow to fluctuate visibly.
| Hydraulic factor | Consequence if undersized or miscalculated |
|---|---|
| Pump flow rate | Thin or broken water sheet at the edge |
| Catch basin volume | Overflow flooding, water damage |
| Pipe diameter | Pressure loss, uneven edge flow |
| Return line capacity | Surge failure during startup |
The engineering behind custom pools is what separates a pool that looks great in photos from one that performs reliably for decades.
What do infinity edge pools cost, and what maintenance do they need?
Infinity edge pools cost $60,000 to $150,000 or more, typically running $20,000 to $35,000 above a comparable standard inground pool. That premium reflects the additional engineering, the catch basin construction, the specialized hydraulic systems, and the precision labor involved. Site complexity pushes costs higher. A sloped Hill Country lot with expansive soil requires more excavation, more structural reinforcement, and more careful drainage planning than a flat suburban yard.
Ongoing maintenance adds another layer of responsibility that standard pool owners do not face:
- Pump and hydraulic calibration: The overflow and recirculation pumps need regular inspection. Flow rates shift as equipment ages, and even small changes affect the edge appearance.
- Catch basin monitoring: Debris accumulates in the basin faster than in the main pool. Regular cleaning prevents pump damage and keeps the overflow system running cleanly.
- Water chemistry: Two connected bodies of water require consistent chemical balancing across both the main pool and the catch basin. Neglecting the basin leads to algae growth that eventually migrates to the main pool.
- Soil settlement checks: In areas with expansive clay soils, annual checks for any movement around the vanishing edge wall catch problems before they become structural repairs.
The luxury pool features that add the most long-term value are the ones engineered correctly from the start, not added as afterthoughts.
Key Takeaways
A successful infinity edge pool requires precise hydraulic engineering, a properly sized catch basin, and a vanishing edge wall leveled to within 1/16th of an inch.
| Point | Details |
|---|---|
| Edge wall tolerance | The vanishing edge wall must be level within 1/16th of an inch to maintain a smooth water sheet. |
| Catch basin sizing | Size the basin to handle surge flow, pipe water volume, and swimmer displacement to prevent overflow damage. |
| Construction timeline | Expect 4 to 6 months from start to finish, longer than a standard pool due to engineering demands. |
| Cost premium | Budget $20,000 to $35,000 above a standard inground pool, with total costs reaching $60,000 to $150,000 or more. |
| Hydraulic flow rates | Plan for 4 to 10 gallons per minute per linear foot of edge to sustain the vanishing effect. |
What I have learned from building infinity edge pools in Texas
After working on custom pools across Austin and the Hill Country, the pattern I see most often is this: homeowners fall in love with the visual and then underestimate the engineering. That is not a criticism. The vanishing edge effect is genuinely stunning, especially on a sloped lot with a long view. But the pools that disappoint are almost always the ones where the hydraulic system was treated as an afterthought.
The single biggest mistake I see is contractors who build beautiful shells but hand off the hydraulic design to a plumber who has never done an infinity pool before. The catch basin ends up undersized, the pumps are not balanced, and the homeowner spends the first year dealing with overflow problems and an edge that runs unevenly. Fixing that after the fact is expensive and disruptive.
My honest advice: hire a contractor who can show you completed infinity edge pools they have built, not just renderings. Ask specifically about their hydraulic calculations and how they sized the catch basin. If they cannot walk you through that conversation confidently, keep looking. The visual effect you are paying for lives or dies on those details.
One more thing worth saying: the view orientation decision is permanent. Take the time to sit in a chair at water level on your proposed pool site before you finalize the edge placement. What you see from that position is what you will see for the life of the pool.
— Mark
How Longhornpools builds custom infinity edge pools
Longhornpools designs and builds custom infinity edge pools across Austin and the Texas Hill Country, with deep experience in the sloped terrain and expansive soils that make this region both challenging and ideal for vanishing edge designs.
Every project starts with a site evaluation and a free 3D backyard design so you can see exactly how the pool will sit on your property before any ground is broken. Our team handles structural engineering, hydraulic design, and construction under one roof, which means the catch basin, the edge wall, and the pump system are all designed together from day one. The Longhornpools Signature Series represents our highest level of custom craftsmanship, built for homeowners who want a pool that performs as well as it looks.
FAQ
What is a vanishing edge pool?
A vanishing edge pool, also called an infinity edge pool, is a swimming pool where one or more edges overflow into a catch basin below, creating the visual illusion that the water extends to the horizon.
How long does it take to build an infinity edge pool?
Construction typically takes 4 to 6 months from start to finish, longer than a standard pool because of the engineering phase, precision edge leveling, and hydraulic system installation.
How much does an infinity edge pool cost?
Total costs range from $60,000 to $150,000 or more, with infinity pools typically running $20,000 to $35,000 above a comparable standard inground pool due to engineering and catch basin requirements.
What is the most common construction mistake on infinity pools?
An undersized catch basin is the most frequent and costly error. It must be sized to handle surge flow, water in transit through pipes, and the volume displaced by swimmers to prevent overflow damage.
Can any yard support an infinity edge pool?
Not every yard qualifies. A minimum vertical drop of 4 to 6 feet from the pool rim to the terrain below is needed for the vanishing effect to work, and soil stability must be confirmed through a geotechnical study before design begins.
