A pool integrated spa is defined as a single water system where your swimming pool and spa share one filtration loop, one chemical balance, and one equipment pad, while a dedicated heater warms the spa zone separately to 96°F–104°F for hydrotherapy. The industry term for this setup is a “spool” or “combo pool,” and understanding how pool integrated spa works is the key to deciding whether it fits your backyard and your lifestyle. Brands like Pentair and Jandy build the automation controllers and heaters that make this possible. The result is one cohesive outdoor feature that does two very different jobs.
How does a pool integrated spa work technically?
An integrated spa shares the pool’s filtration and circulation system, using automated valves to redirect water into the spa zone on demand. When you activate spa mode, those valves shift water flow away from the main pool return lines and push it through the spa jets instead. The pool pump keeps running. Only the destination changes.
Here is what happens inside the system when you switch to spa mode:
- Automated valves (typically actuated by a Pentair EasyTouch or Jandy iAqualink controller) rotate to redirect flow into the spa plumbing loop.
- The heater fires up and raises spa water temperature to your target, usually somewhere between 96°F and 104°F.
- A booster pump activates if your spa has more than six or seven jets, since the main pool pump alone cannot generate enough pressure for full jet performance.
- The filtration system continues cleaning water from both zones through a shared filter and returns treated water back into circulation.
- Automation apps let you trigger all of this from your phone before you even walk outside.
The shared equipment setup is one of the biggest practical advantages. You are not running two separate pumps, two separate filters, and two separate chemical systems. One equipment pad handles both. Integrated automation simplifies switching between pool and spa use, and without it, manual valve changes become frequent and error prone.
Pro Tip: Set your spa mode to preheat 30 minutes before you plan to use it. Most Pentair and Jandy apps let you schedule this automatically so the water is ready when you are.
The pool water temperature stays lower, typically in the mid-80s°F for Texas summers, while the spa climbs to your preferred soaking temperature. Both zones share the same water chemistry, which is efficient but requires some extra attention. More on that in the maintenance section.
What are the main design options for integrating a spa into a pool?
Design choices for integrated spas fall into three main categories, each with a different visual impact and functional trade-off. Choosing the right one depends on your yard size, your budget, and how you want the feature to look from inside the house.
| Spa type | Key feature | Best for | Main drawback |
|---|---|---|---|
| In-pool integrated (flush dam wall) | Spa sits at pool level; water spills over a shared wall | Compact yards; clean modern look | Less dramatic visual; limited seating depth options |
| Raised spillover spa | Spa sits elevated; water cascades into pool | Dramatic aesthetics; sound feature | Requires more structural work and yard space |
| Freestanding spa near pool | Separate shell connected by shared plumbing | Retrofit situations; flexible placement | Longer plumbing runs; less cohesive look |
The raised spillover spa is the most popular choice in Central Texas luxury builds. The cascade effect adds sound and movement to the backyard, and the elevated position gives the spa a focal point quality that flat in-pool designs cannot match. That said, it requires more excavation and structural reinforcement, which adds to the budget.
The in-pool flush design works well for smaller lots in Austin neighborhoods where yard space is tight. The spa integrates so cleanly into the pool shell that it reads as one continuous water feature. The trade-off is that the visual drama is lower, and you lose the waterfall sound.
Freestanding spas connected to an existing pool are the most common retrofit scenario. They work, but the plumbing runs are longer, heat loss is higher, and the aesthetic rarely looks as intentional as a purpose-built design. Integrated spa designs planned from the first sketch as unified shells achieve the best aesthetic and operational results. If you are building new, plan the spa into the original design. Retrofitting always costs more and compromises the final look.
A few other design factors worth thinking through:
- Seat depth and jet placement matter for hydrotherapy. Ergonomic jet positioning at shoulder, lumbar, and calf height makes a real difference in how effective the spa feels.
- Coping and tile continuity between pool and spa creates a polished, unified appearance.
- Spillway width on a raised spa affects both water volume and sound level. Wider spillways create a softer, broader cascade.
What are the benefits and challenges of a pool and spa combination?
The wellness benefits of integrated spas go beyond simple relaxation. Moving from cool pool water into heated spa hydrotherapy supports muscle recovery, reduces joint stiffness, and extends your time outdoors well past swim season. In Central Texas, where summer pool use runs from april through october, a heated spa keeps your backyard relevant through the cooler months.
Here are the core benefits homeowners consistently report:
- Year-round use. Integrated spas convert pools from seasonal features into year-round wellness assets. That changes the return on investment calculation significantly.
- Lower equipment cost. One pump, one filter, one chemical system. Integrated setups cost roughly 20% less than installing a pool and a separate hot tub as two independent systems.
- Property value. Integrated pool and spa combos often return 50%–80% of installation costs in favorable markets, making them one of the stronger outdoor investments a homeowner can make.
- Hydrotherapy access. Heated jets at the right pressure and placement deliver genuine therapeutic benefit, not just comfort.
The challenges are real too, and you should go in with clear expectations.
Chemical management gets more demanding with an integrated system. The spa’s higher water temperature burns through chlorine faster than the pool does. That means your sanitizer levels can drop in the spa zone while the pool reads fine. Automated dosing systems help, but you still need to test both zones regularly.
Retrofitting an existing pool to add a spa is not always straightforward. Adding a spa to an existing pool requires structural tie-ins, plumbing capacity evaluation, and a professional inspection to confirm the equipment can handle the added heating and pump loads. Do not skip that inspection step. Equipment that is undersized for the added load will fail early.
Pro Tip: If you are retrofitting, ask your contractor to assess your current pump’s flow rate before committing to a jet count. More jets require more flow. An undersized pump running at max capacity shortens its lifespan fast.
How to maintain water quality and system health in integrated pool spas
Shared water chemistry is the biggest ongoing maintenance difference between an integrated spa and a standalone pool. The spa’s heat accelerates sanitizer demand and increases bacteria risk, so chemical balancing requires more attention than a pool-only system.
Here is a practical maintenance checklist for integrated pool spa systems:
- Test water chemistry twice a week during heavy spa use. Test pH, chlorine, alkalinity, and calcium hardness. The spa zone will drift faster than the pool.
- Use saltwater chlorination where possible. Saltwater chlorination in integrated spas provides consistent sanitization that adjusts to the rapid chlorine consumption in heated spa water. It is not hands-free, but it reduces the frequency of manual dosing significantly.
- Clean spa jets and filter cartridges monthly. Biofilm builds up in warm, wet jet housings faster than anywhere else in the system.

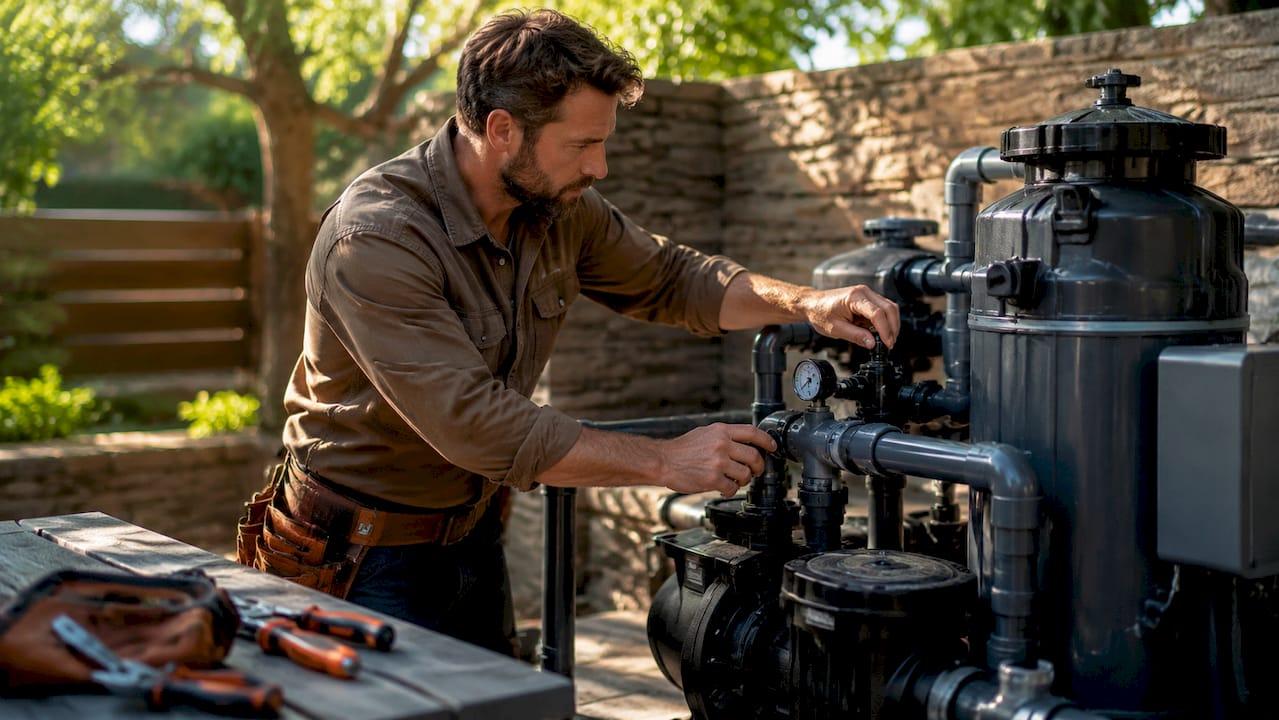

- Inspect valves and actuators quarterly. Automated valves that stick or fail to seat fully cause water to bypass the spa zone or lose pressure at the jets.
- Schedule an annual equipment inspection covering the heater, pump seals, and automation controller. Catching a failing seal early costs far less than replacing a flooded equipment pad.
Automation systems are vital to managing spa mode effectively. They enable one-touch operation of pumps, heaters, and valves, preventing manual errors and equipment strain. If your current system runs on manual valves and a basic timer, upgrading to a Pentair IntelliCenter or Jandy iAqualink controller is one of the highest-value improvements you can make. You can also connect automated pH dosing to the same controller, which handles the chemistry drift problem in the spa zone without daily intervention.
Pro Tip: Run the spa filtration cycle for at least two hours after each use. This flushes warm, used water through the filter and prevents bacteria from settling in the jet plumbing overnight.
For a deeper look at pool maintenance routines specific to Central Texas conditions, Longhornpools has a practical guide covering shared water systems and seasonal chemistry adjustments.
Key Takeaways
A pool integrated spa works by sharing filtration and circulation with the pool while using automated valves, a dedicated heater, and optional booster pump to deliver 96°F–104°F hydrotherapy on demand from a single equipment pad.
| Point | Details |
|---|---|
| Shared system, separate heat | The pool and spa share one filter and pump; only the heater and valves separate their functions. |
| Design choice matters | Raised spillover spas offer the best aesthetics; flush in-pool designs suit smaller yards. |
| Plan it from the start | Integrated designs built as one unified shell outperform retrofits in both cost and appearance. |
| Chemistry needs extra attention | Spa heat burns chlorine faster; saltwater chlorination and automated dosing reduce the workload. |
| Automation is not optional | Controllers like Pentair IntelliCenter make spa mode reliable, safe, and genuinely convenient. |
What I have learned building integrated spas in Central Texas
After years of designing and building custom pool and spa combinations across Austin and the Hill Country, the single biggest mistake I see is treating the spa as an afterthought. A homeowner will come to us with a pool design they love, then ask us to “add a spa” at the end of the process. That approach almost always costs more, looks less intentional, and creates equipment headaches down the road.
The best integrated spas I have worked on were planned as one unified system from the first site visit. The shell, the plumbing, the equipment pad, and the automation controller were all sized and positioned together. That coordination is what produces the clean aesthetic and the reliable operation that homeowners actually enjoy for 10 or 15 years.
The other thing I tell every client: do not underestimate the value of a good automation system. I have seen homeowners skip the Pentair or Jandy controller to save a few thousand dollars, then spend the next year manually adjusting valves and fighting chemistry problems in the spa zone. The controller pays for itself in convenience and in equipment longevity.
One more thing worth saying plainly. Hydrotherapy in a well-designed integrated spa is genuinely different from sitting in a cheap portable hot tub. Ergonomic jet placement, proper water temperature, and the contrast of moving between cool pool water and heated spa water produces a recovery and relaxation effect that is hard to replicate any other way. If you are on the fence, that experience is worth building for.
— Mark
Build your integrated spa with Longhornpools
If you are ready to add a spa to your pool or build a custom pool and spa combination from the ground up, Longhornpools designs and builds both in Austin and across the Texas Hill Country.
Our Signature Series pool designs include custom spa integration with full automation, ergonomic jet layouts, and finish options that match your outdoor living vision. Every project starts with a free 3D backyard design so you can see exactly what the finished space will look like before construction begins. We also offer pool project financing to make the investment work for your timeline. Contact Longhornpools to schedule your consultation and get a design built around your yard, your lifestyle, and the Central Texas climate.
FAQ
What does a pool integrated spa share with the pool?
An integrated spa shares the pool’s filtration system, circulation pump, and water chemistry. Automated valves redirect water flow into the spa zone when spa mode is activated.
How hot does an integrated spa get?
Integrated spa water is typically heated to between 96°F and 104°F, while the connected pool stays at a lower ambient temperature.
Is it cheaper to build an integrated spa than a separate hot tub?
Integrated systems cost roughly 20% less than installing a pool and a standalone hot tub as two independent systems, and they return 50%–80% of installation costs in favorable real estate markets.
Can I add a spa to my existing pool?
Yes, but adding a spa to an existing pool requires a professional inspection of your current plumbing, structure, and equipment capacity before any work begins. Retrofitting costs more than building integrated from the start.
How often should I test water chemistry in an integrated spa?
Test pH, chlorine, and alkalinity at least twice a week during regular spa use. Spa heat accelerates sanitizer consumption, so the chemistry drifts faster than in a pool-only system.
